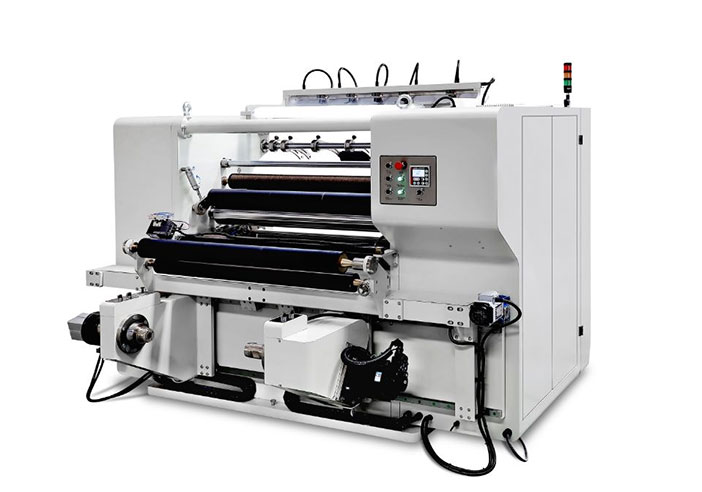

SSR-A Slitting Machine
As a type of commonly used converting equipment, a slitter is a primary machine used in the conversion of paper, film, and foil material. Designed to convert a wide roll of material into several thinner rolls, the slitting machine starts by unwinding a master roll, continues by slitting the unwound material into various widths, and finally completes the process by rewinding the slit material onto cores of various widths. The slitter comes with many configurations according to the customer needs.
- Max slitting speed: 500mpm
- Max web width: 1050/1300/1500mm
- Max unwinding diameter: 800mm
- Max rewinding diameter: 600mm
- Min slitting width: 50mm
- Suitable substrates: Plastics films, metalized films, papers, aluminum foils, etc.
- Automatic tension control;

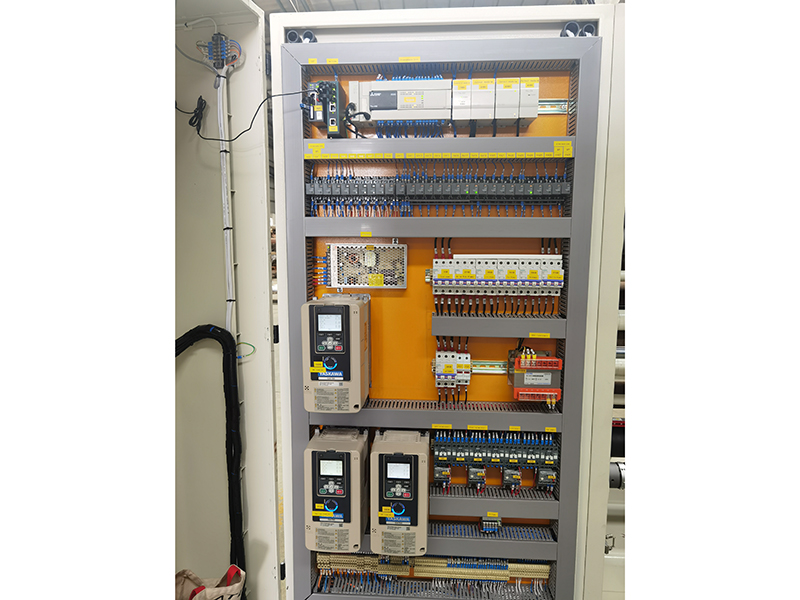

- PLC control with touch screen;
- Shaftless unwinder with electric lifting system;

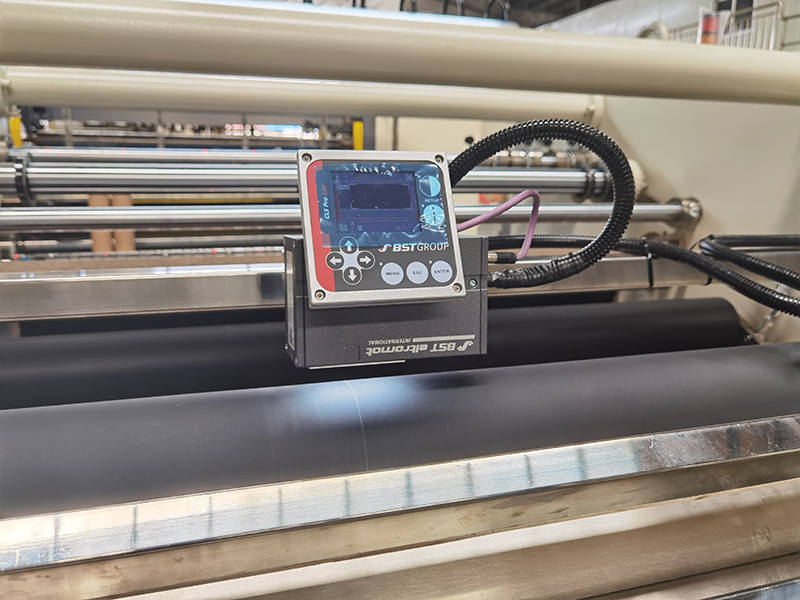

- Laser positioning system for paper core;
- Stand for unloading the slit reels.
Get in Touch

As a leading solventless lamination machine manufacturer in China, SINOMECH offers various solventless laminators in standard and customized models to meet different lamination needs in the fields of flexible packaging, tobacco packaging, home decorative materials, etc. Whether you are manufacturing laminates to pack food, goods or liquids, SINOMECH lamination machines with high performance are the perfect choice for your products. As important converting machinery, our web lamination machinery is designed to meet the highest quality and product safety requirements. Various substrates including plastic film, metalized film, alu foil, rigid film, paper, cardboard adapt to being laminated with our machines. In addition to the film laminators, we also provide flexo printing press and slitting machine to realize one-stop solution for manufacturing your packaging. Thanks to our own research and development, we are able to find the perfect lamination solution for each product without forgetting environmentally friendly solutions. We are always ready to help you with our know-know in the laminating industry.
-
- Solventless Laminator A450
- Max Laminating speed
- 450mpm
- Max Web Width
- 1050/1300/1500mm
- Max unwinding diameter
- 800/1000mm
-
- Triplex Solventless Laminating Machine A400-3
- Max Laminating speed
- 400m/min
- Max Web Width
- 1050/1300mm
- Max diameter for main unwinding
- ⌀800 mm
-
- Digital Solventless Laminator A600D
- Max lamination speed
- 600m/min
- Max Web Width
- 1050/1300/1500mm
- Max unwinding diameter
- 1000mm
-
- Dry Laminator with Turret Winders A200T
- Max laminating speed
- 200mpm
- Max web Width
- 1050/1300/1500mm
- Max unwinding diameter
- 800mm
