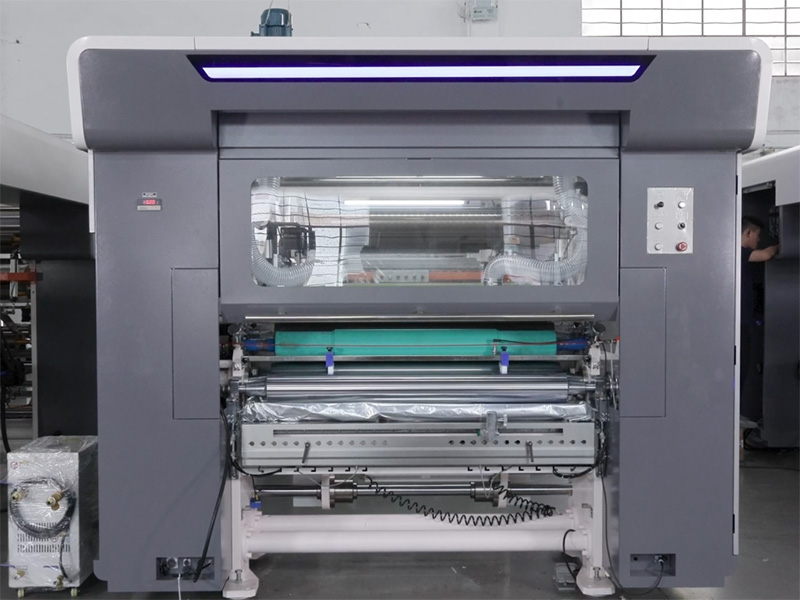

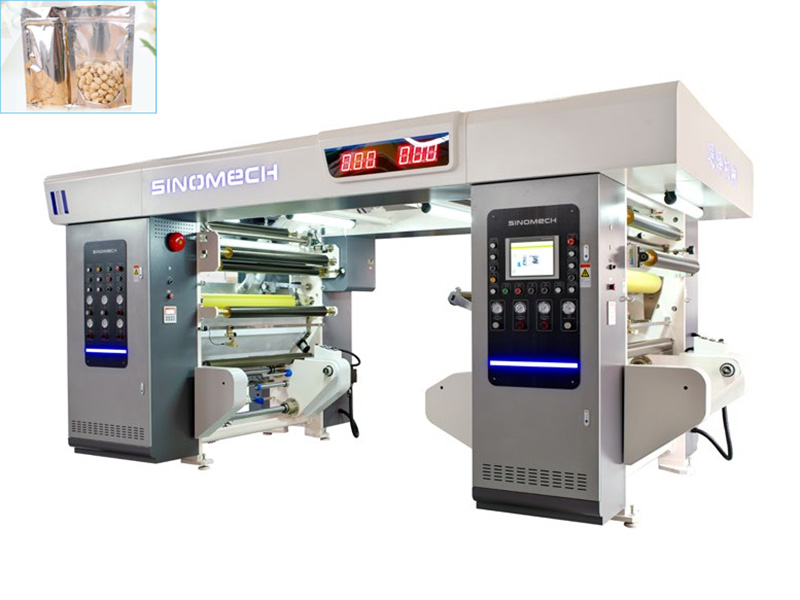

Solventless Laminator A400
Solventless Lamination Machine
Model A400 solventless laminating machine is ideal for getting started in flexible packaging solventless lamination. It is suitable for high speed lamination of different types of plastic films and metalized films.
- Max laminating speed: 400m/min
- Max web width: 1050/1300/1500mm
- Max unwinding diameter: 800/1000mm
- Max rewinding diameter: 800/1000mm
- Reel fixing: shafted
- Glue applicator: Automatic mixer
- Suitable Substrates: Plastics films, metalized films, papers, aluminum foils, etc.
- Tension Control System: Independent sectional control with dancer roller and load cell, which is best arranged for various types of light and extensible substrates based on the particular features of solventless adhesives.
- Metering-gap Adjustment: Patented one-switch Quick Positioning Mechanism (QPS), with much less adjusting time and much more constancy.
- Coating Cylinder Control: Double servo-motor control initiated by Sinomech with better accuracy and more flexibility in coating amount adjustment.
- Laminating Nip: Patented horizontal design, with much more stable laminating pressure and applicable for various types of substrates.
- Machine Management and Remote Maintenance: open to be integrated into Sinomech Cloud Platform for Solventless Laminators (SCPSL).

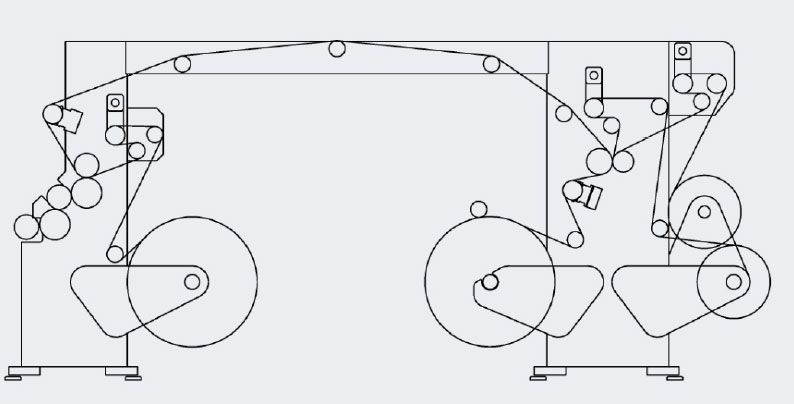

1. With addition of the 3rd unwinder and tension control unit with dancer roll, it can be upgraded to a patented Twin-web Laminator.
2. By adding a short web path and tension control unit with load cell, the lamination equipment can be configured for aluminum foil lamination.
- Standard adhesive mixer SINOMECH SM1-40
- Auto-refiling System AR1-200
- Corona treater
One-switch quick positioning mechanism
Double unwinders with a dancer roll
Shaftless winders
Coating unit independently controlled by a servo-motor
Rewinding assisted roller
Get in Touch

As a leading solventless lamination machine manufacturer in China, SINOMECH offers various solventless laminators in standard and customized models to meet different lamination needs in the fields of flexible packaging, tobacco packaging, home decorative materials, etc. Whether you are manufacturing laminates to pack food, goods or liquids, SINOMECH lamination machines with high performance are the perfect choice for your products. As important converting machinery, our web lamination machinery is designed to meet the highest quality and product safety requirements. Various substrates including plastic film, metalized film, alu foil, rigid film, paper, cardboard adapt to being laminated with our machines. In addition to the film laminators, we also provide flexo printing press and slitting machine to realize one-stop solution for manufacturing your packaging. Thanks to our own research and development, we are able to find the perfect lamination solution for each product without forgetting environmentally friendly solutions. We are always ready to help you with our know-know in the laminating industry.
-
