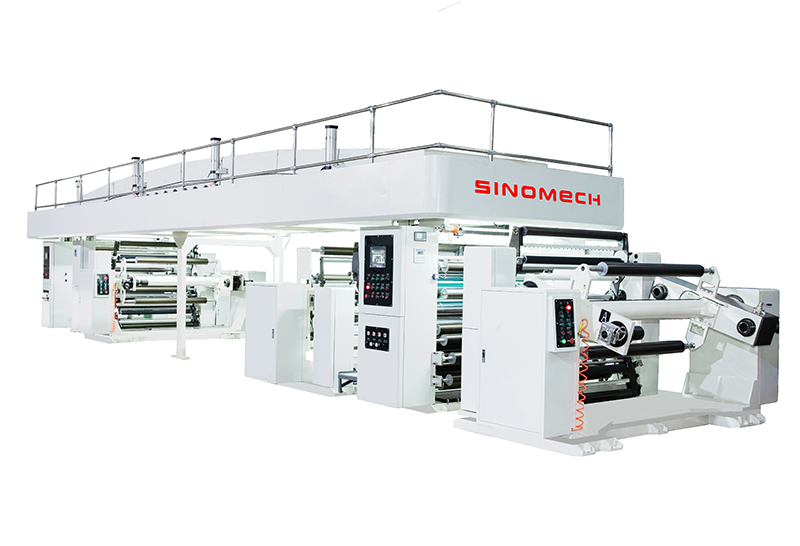

Dry Laminator with Turret Winders A200T
Dry Laminating Machine
The dry laminating machine features outstanding design, high reliability & safety and easy operation. This lamination equipment is designed with turret winders, providing unmatched efficiency in the lamination process. Our know-how about web handling & tension control, along with the ability to register coatings enables the dry lamination machine to be a great option for laminating of various materials. In addition, the lamination machine comes with a high-efficient drying system, and the low-waste automatic splicing process can perform well on plastic laminating.
- Max laminating speed: 200mpm
- Max web width: 1050/1300/1500mm
- Max unwinding diameter: 800mm
- Max rewinding diameter: 800mm
- Reel fixing: Shafted
- Length of drying section: 10m (2.5m x 4)
- Machine dimensions: 16m x 4.5m x 4.2m
- Suitable substrates: Plastics films, metalized films, papers, aluminum foils, etc.
- Coating unit: Gravure roll coating system for smooth coating
- Drying section: 4 sectional drying hood made of stainless steel is suitable for both solvent-based and water-based adhesives. Using hot air recycling system allows for energy saving.
- Unwinders and rewinder: Non-stop winders with flying splice system
Get in Touch

As a leading solventless lamination machine manufacturer in China, SINOMECH offers various solventless laminators in standard and customized models to meet different lamination needs in the fields of flexible packaging, tobacco packaging, home decorative materials, etc. Whether you are manufacturing laminates to pack food, goods or liquids, SINOMECH lamination machines with high performance are the perfect choice for your products. As important converting machinery, our web lamination machinery is designed to meet the highest quality and product safety requirements. Various substrates including plastic film, metalized film, alu foil, rigid film, paper, cardboard adapt to being laminated with our machines. In addition to the film laminators, we also provide flexo printing press and slitting machine to realize one-stop solution for manufacturing your packaging. Thanks to our own research and development, we are able to find the perfect lamination solution for each product without forgetting environmentally friendly solutions. We are always ready to help you with our know-know in the laminating industry.
-
