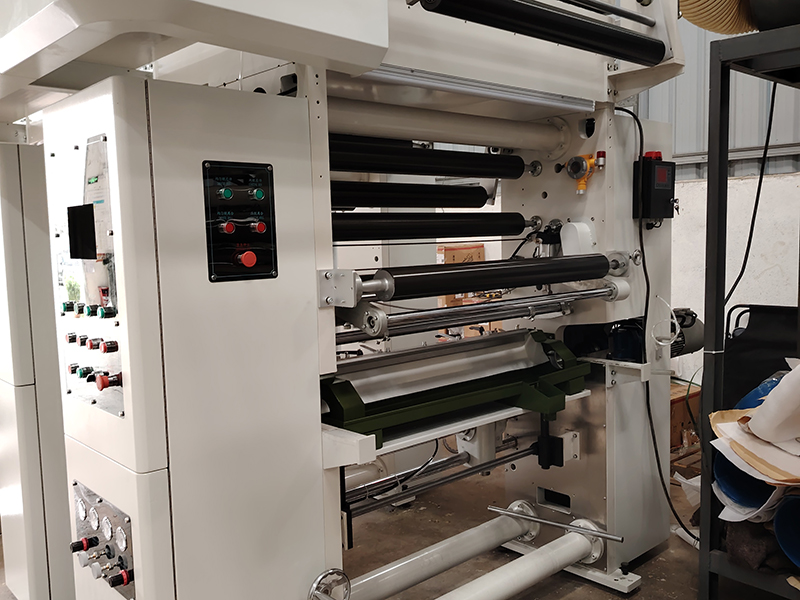

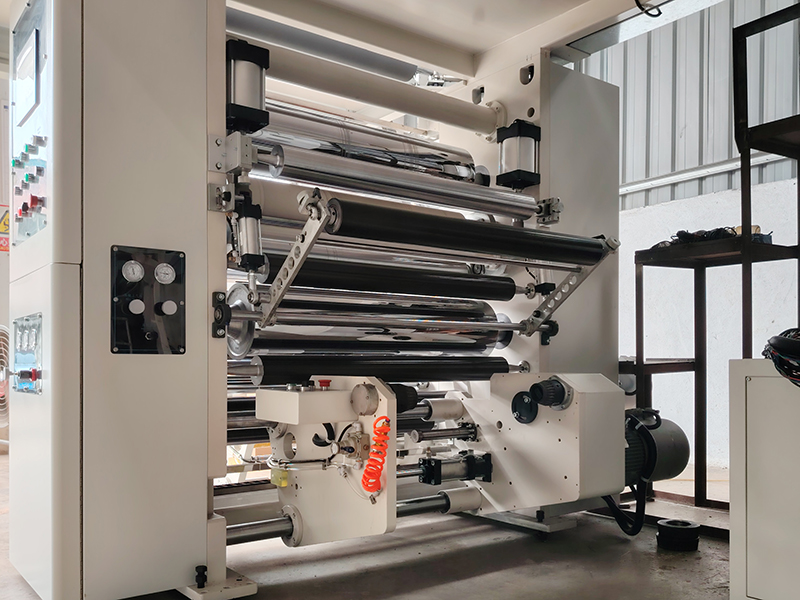

Dry Laminator A200
Dry Laminating Machine
In response to the mass demand of various materials and multiple methods in flexible packing markets, drying laminating machine was developed as the ultimate laminating solution. With high level of automation, the taper tension settings can be easily adjusted on the touch screen according to different technology and process applications. The guiding rollers in the drying tunnel are driven by the servo motor, providing smooth laminating results in a precise manner. The dry laminating machine features high productivity and minimized loss, enabling it to be a great option for flexible packaging.
- Max laminating speed: 200mpm
- Max web width: 1050/1300/1500mm
- Max unwinding diameter: 800mm
- Max rewinding diameter: 800mm
- Reel fixing: Shafted
- Length of drying section: 10m (2.5mx 4)
- Machine dimensions: 12mx 3.2m x 3.8m
- Suitable substrates: Plastics films, metalized films, papers, aluminum foils, etc.
- Coating unit: Gravure roll coating system for smooth coating

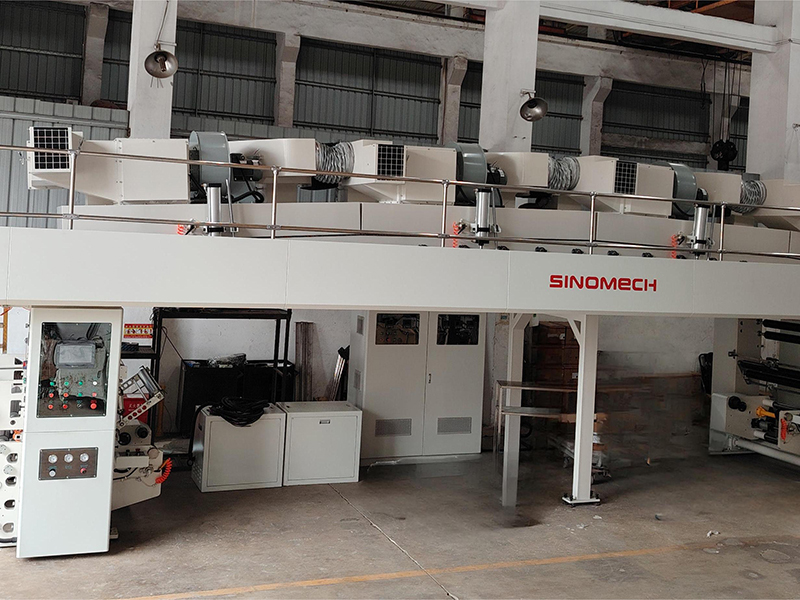

- Drying section: 4 sectional drying hood made of stainless steel is suitable for both solvent-based and water-based adhesives. Using hot air recycling system allows for energy saving.
Get in Touch

As a leading solventless lamination machine manufacturer in China, SINOMECH offers various solventless laminators in standard and customized models to meet different lamination needs in the fields of flexible packaging, tobacco packaging, home decorative materials, etc. Whether you are manufacturing laminates to pack food, goods or liquids, SINOMECH lamination machines with high performance are the perfect choice for your products. As important converting machinery, our web lamination machinery is designed to meet the highest quality and product safety requirements. Various substrates including plastic film, metalized film, alu foil, rigid film, paper, cardboard adapt to being laminated with our machines. In addition to the film laminators, we also provide flexo printing press and slitting machine to realize one-stop solution for manufacturing your packaging. Thanks to our own research and development, we are able to find the perfect lamination solution for each product without forgetting environmentally friendly solutions. We are always ready to help you with our know-know in the laminating industry.
-
- Dry Laminator with Turret Winders A200T
- Max laminating speed
- 200mpm
- Max web Width
- 1050/1300/1500mm
- Max unwinding diameter
- 800mm
-
- CINOVA Gearless CI Flexo Printing Press
- Print width
- 1270mm
- Print unit
- 8 colors
- Printing repeat length
- 360 ~ 940mm
-
- BOOMING Gearless CI Flexo Printing Press
- Print width
- 1200mm
- Print unit
- 8 colors
- Printing repeat length
- 380 ~ 880 mm
-
- Solventless Laminator A450
- Max Laminating speed
- 450mpm
- Max Web Width
- 1050/1300/1500mm
- Max unwinding diameter
- 800/1000mm
