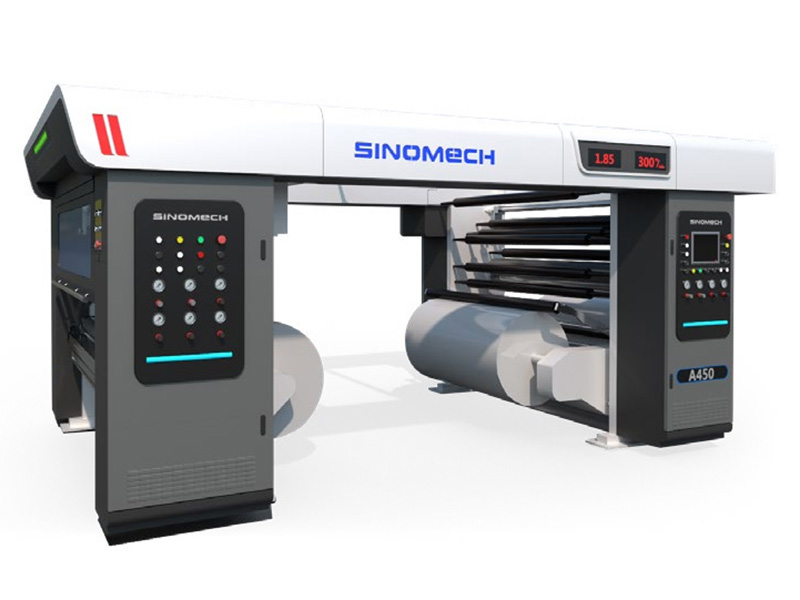

Solventless Laminator A450
Solventless Lamination Machine
Model A450 solventless laminating machine is suitable for high-speed solventless lamination of different types of plastic films, metalized films, Aluminum foils and papers. It is one of the most popular laminator models in the markets.
- Max laminating speed: 450mpm
- Max web width: 1050/1300/1500mm
- Max unwinding diameter: 800/1000mm
- Max rewinding diameter: 800/1000mm
- Reel fixing: Shafted or shaftless
- Glue applicator: automatic adhesive mixer or single-component adhesive dispensing system
- Suitable Substrates: Plastics films, metalized films, papers, aluminum foils, etc.
- Tension Control System: Independent sectional control with dancer roller and load cell combined mode (abb.3D1L), which is best arranged for various types of light and extensible substrates based on the particular features of solventless adhesives.
- Metering-gap Adjustment: Patented one-switch Quick Positioning Mechanism (QPS), with much less adjusting time and much more constancy.
- Coating Cylinder Control: Double servo-motor control initiated by Sinomech with better accuracy and more flexibility in coating amount adjustment.
- Laminating Nip: Patented horizontal Separable Back-up Roller (SBR), with much more stable laminating pressure and applicable for more types of substrates, esp., thin and light extensible materials.
- Machine Management and Remote Maintenance: open to be integrated into Sinomech Cloud Platform for Solventless Laminators (SCPSL).

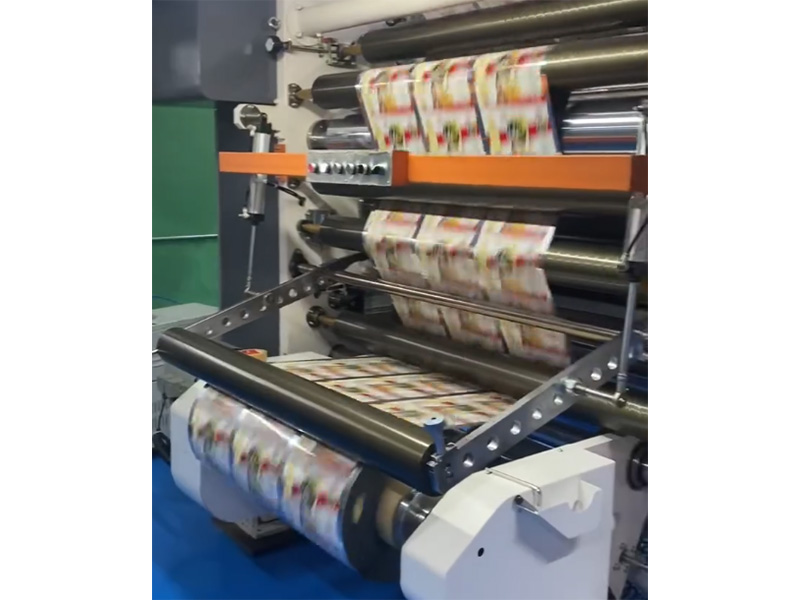

1. With window lamination function, the laminating machine can be extended to be applicable for paper/film or film/film lamination for window patching packaging.
- Standard adhesive mixer SINOMECH SM1-40
- Single-component adhesive dispensing system SM3-200
- Auto-refiling System AR1-200
- Corona treater
One-switch quick positioning mechanism
Impression nip with separable back-up roller
Coating unit independently controlled by a servo-motor

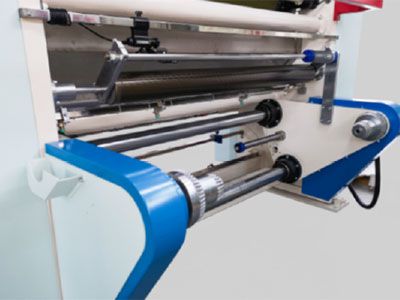

Shaftless winder
Rewinding assisted roller
Get in Touch
As a leading solventless lamination machine manufacturer in China, SINOMECH offers various solventless laminators in standard and customized models to meet different lamination needs in the fields of flexible packaging, tobacco packaging, home decorative materials, etc. Whether you are manufacturing laminates to pack food, goods or liquids, SINOMECH lamination machines with high performance are the perfect choice for your products. As important converting machinery, our web lamination machinery is designed to meet the highest quality and product safety requirements. Various substrates including plastic film, metalized film, alu foil, rigid film, paper, cardboard adapt to being laminated with our machines. In addition to the film laminators, we also provide flexo printing press and slitting machine to realize one-stop solution for manufacturing your packaging. Thanks to our own research and development, we are able to find the perfect lamination solution for each product without forgetting environmentally friendly solutions. We are always ready to help you with our know-know in the laminating industry.
-
