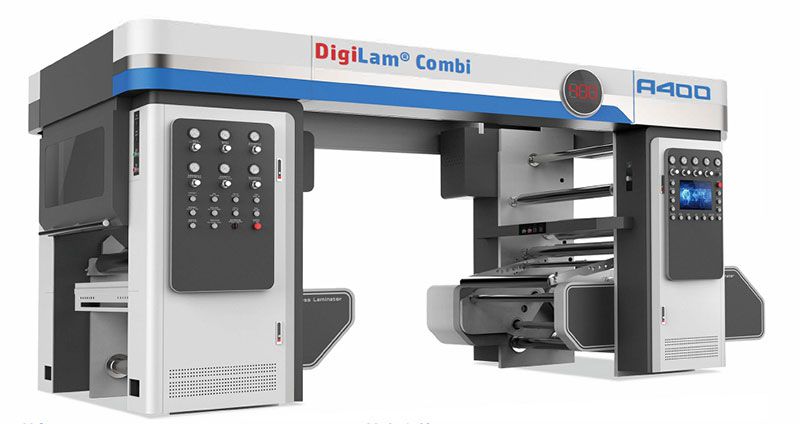

Digilam Combi Laminator A400

Solventless Lamination & Thermal Lamination

Known for long term competitiveness and high flexibility, the Combi laminator combines the benefits of Solventless & Thermal Lamination Technologies in one machine. With solventless adhesive, the laminations can be fabricated with reduced materials at high speed, greatly saving you time and cost. With thermal technology, no adhesive and cure time are needed, providing fast delivery to the market. Featuring easy operation, luxury finishes, and fast delivery enables it to simply enter to flexible packaging for label producers. Due to the combined solventless and thermal lamination, the web lamination equipment has proven to be excellent choice for both large and short runs.

Digilam Combi Laminator A400
Max solventless lamination speed: 400m/min
Max heat press lamination speed: 100m/min
Max web width: 600/800mm
Max unwinding diameter: 800mm
Max rewinding diameter: 800mm
Max thermal laminating temperature: 170℃
Core winding diameter: 76 or 152mm
Features
  • Solventless lamination solution designed specially for printed digital flexible packaging
  • Applicable substrate: Plastic films, metalized films, aluminum foils and others
  • Metering-gap Adjustment: Patented one-switch Quick Positioning Mechanism (QPS), with much less adjusting time and much more constancy.
  • Coating Cylinder Control: Double servo-motor control initiated by Sinomech with better accuracy and more flexibility in coating amount adjustment.
  • Laminating Nip: Patented horizontal Separable Back-up Roller (SBR), with much more stable laminating pressure and applicable for more types of substrates, esp., thin and light extensible materials.
Optional
  • Standard adhesive mixer sinomech SM1-40
  • Auto-refilling system AR1-200
  • Corona treater
Main Components of Laminating Machine
  • One-switch quick positioning mechanismOne-switch quick positioning mechanism

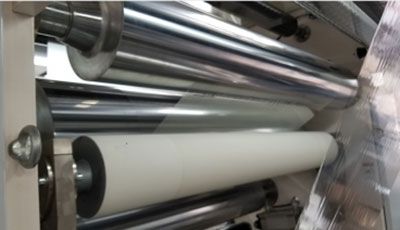

  • Preheating and laminating unitPreheating and laminating unit
  • RewinderRewinder

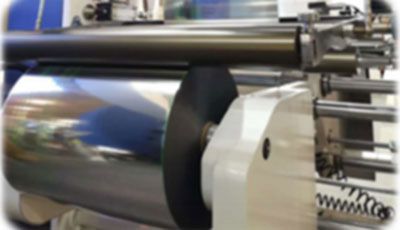

  • Shaftless windersShaftless winders

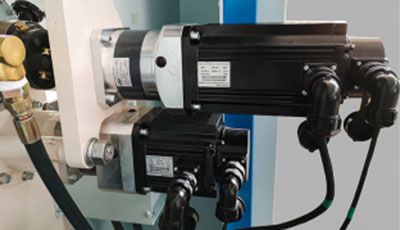

  • Coating unit independently controllyed by a servo-motorCoating unit independently controllyed by a servo-motor
